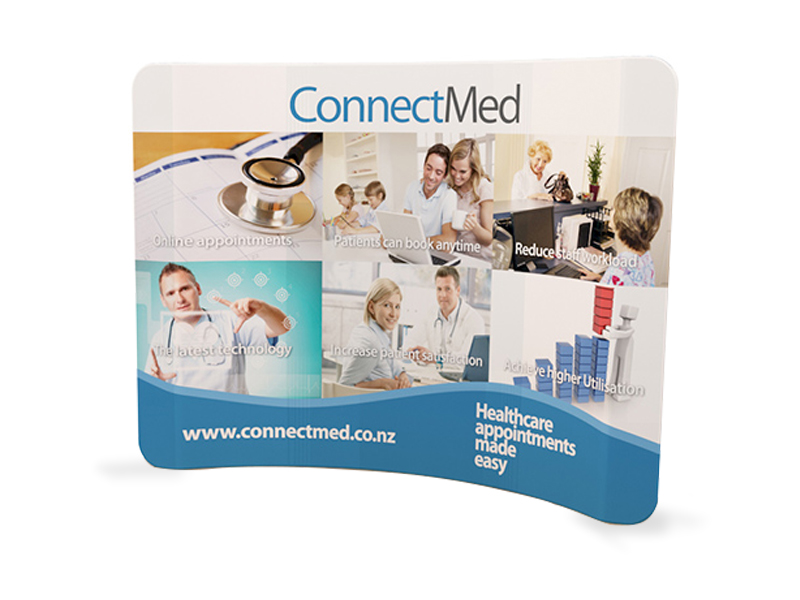

Curve Tension Fabric Display
- Tradeshow fabric displays for exihibits and backdrops
- 8' and 10' floor standing displays; 6ft display designed for tabletops

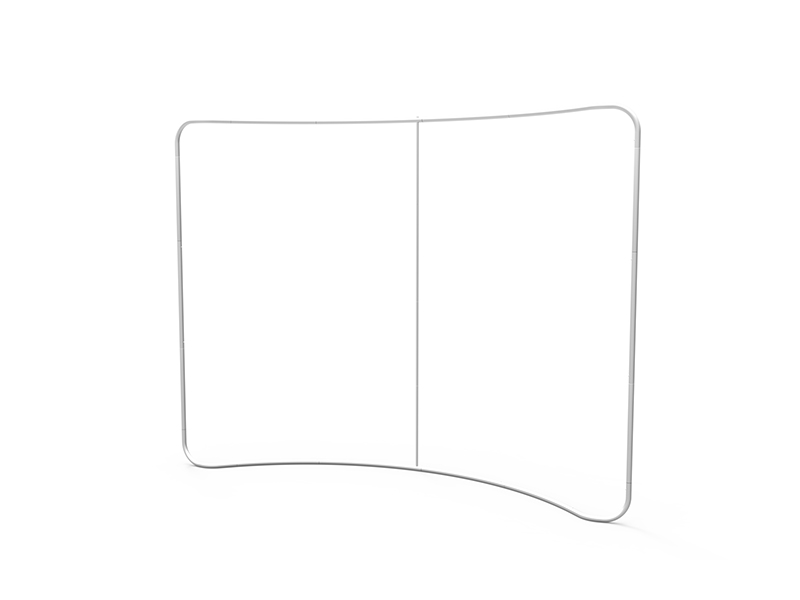

- Curved frame is freestanding
- Single or double sided tension fabric dye-sub print
- Tool free tube hardware·- fast assembly
- Carry bag included for 6', 8' and 10' displays

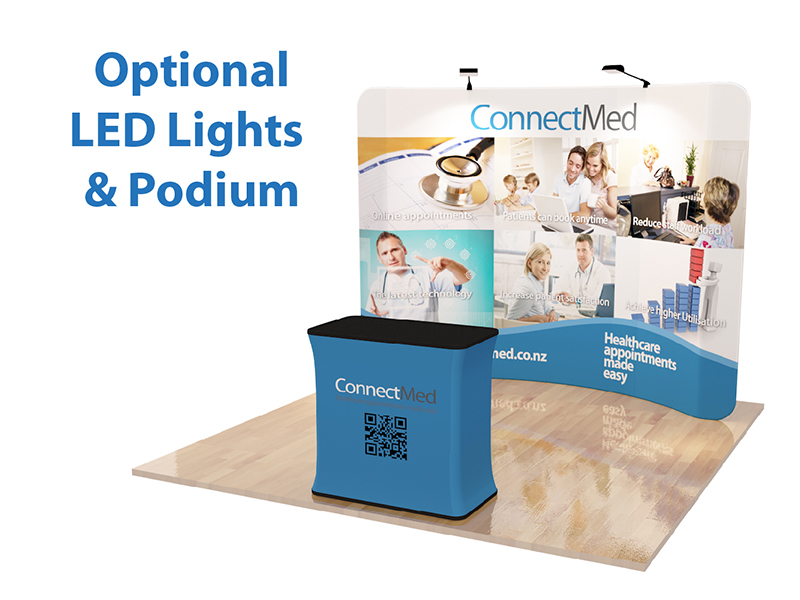

- Hard case / Podium options available for 8' and 10'
Please sign in to see prices
- Description
- Spec
- File Setup
- Installation Guide
Next Day Turnaround and Cut-off Time:
Order and submit artwork before 4pm PST ships next business day. Order after 4pm add 1 business day.
Orders over 100 qty require 2 extra business days.
Same Day Turnaround:
Not available for this product.
Available Production Facility
Your orders are dispatched from the closest facility to your ship-to address for speed and savings
Store pickup only available in our California locations
Description
Our tension displays consist of a lightweight but durable aluminum hardware and a fabric dye sublimated print. The hardware is inserted inside the print, much like a pillow into a pillowcase. The fabric print is stretched tight across the frame and zipped close.
Spec
Material:
- 8.8 oz. Tension Fabric
Hardware:
- Aluminum - Interlocking tube

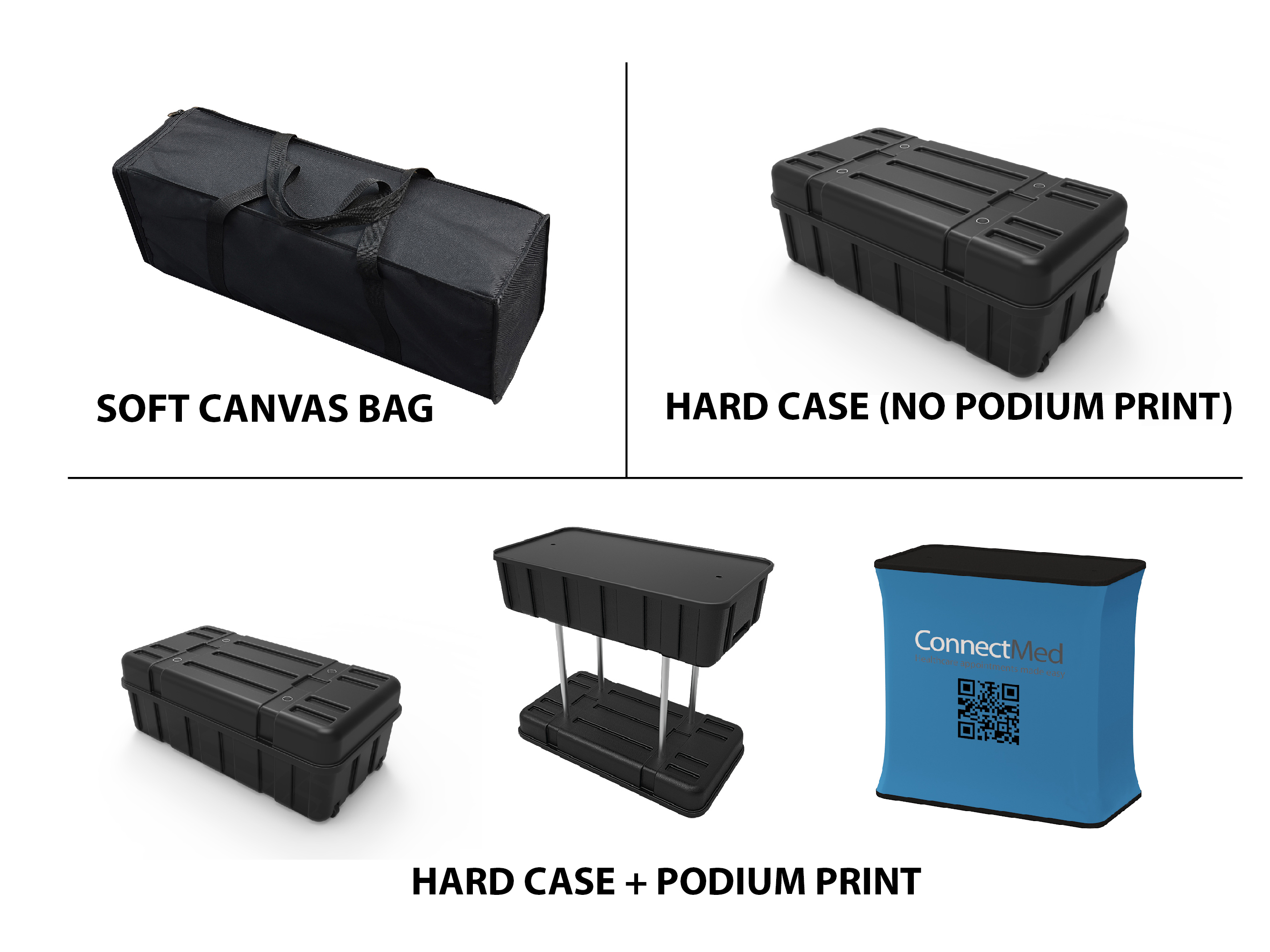

- Soft canvas bag (complimentary)
- Hard Case - Durable Plastic (optional)
Size and Weight :
| Size and Weight | 6ft Curve Shape | 8ft Curve Shape | 10ft Curve Shape |
|---|---|---|---|
|
Display Size |
72"W x 60"H |
96"W x 89"H |
120"W x 89"H |
|
Graphic Size |
78"W x 65.5"H |
102"W x 91"H |
124.5"W x 91"H |
|
Weight (w/ soft canvas bag) |
15 lbs |
20 lbs |
22 lbs |
|
Weight (w/ podium & led lights) |
N/A |
51 lbs |
55 lbs |
|
Package Size (soft canvas bag) |
32"W x 10"H x 9"D |
32"W x 11"H x 11"D |
32"W x 11"H x 11"D |
|
Package Size (hard case) |
40"W x 21"H x 17"D |
40"W x 21"H x 17"D |
40"W x 21"H x 17"D |
|
Podium Size |
37"W x 37"H x 20"D |
37"W x 37"H x 20"D |
37"W x 37"H x 20"D |
File Setup
- Accepted File Formats: JPEG or PDF (single page only)
- Color Space: CMYK
- Resolution: 150dpi for raster images (More than enough for large format)
- Max File Upload Size: 300MB
- Submit artwork built to ordered size - Scaled artwork is automatically detected and fit to order
- Do not include crop marks or bleeds
- Double sided products will be uploaded as two spearate files unless otherwise specified in the artwork template
Additional Tips
- Do not submit with Pantones/Spot Colors - Convert to CMYK
- Convert live fonts to outlines
- Use provided design templates when available
Template Download (Template User Guide)
| Curve Tension Fabric Display | |
|---|---|
|
6' Curve Shape |
|
|
8' Curve Shape |
|
|
10' Curve Shape |
|
|
Podium |
- Do not adjust artboard size
- Do not reposition guidelines
- Design on layer labelled "Artwork"
- Delete mask/guide layers when instructed by template
Installation Guide

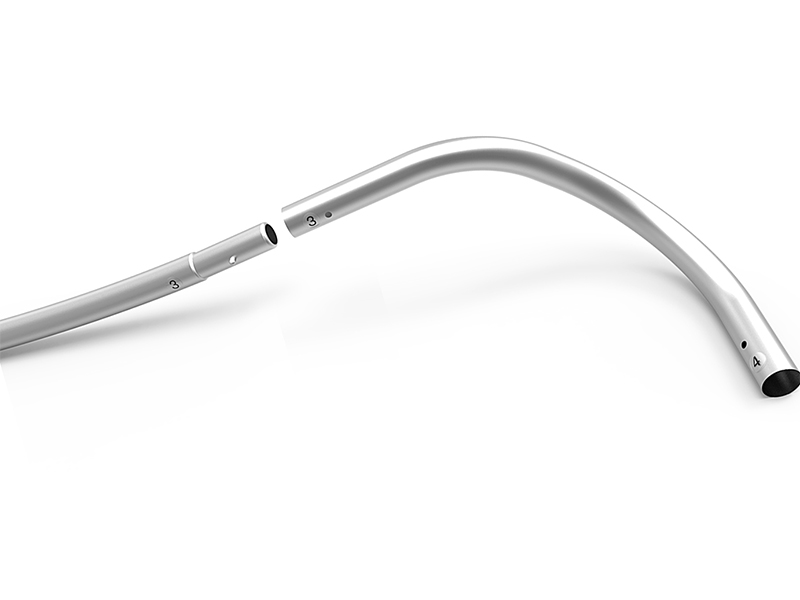

1. Connect tubes of the frame (There are number labels on the tubes)
2. Wrap up the frame with the graphic from left to right, then zip up

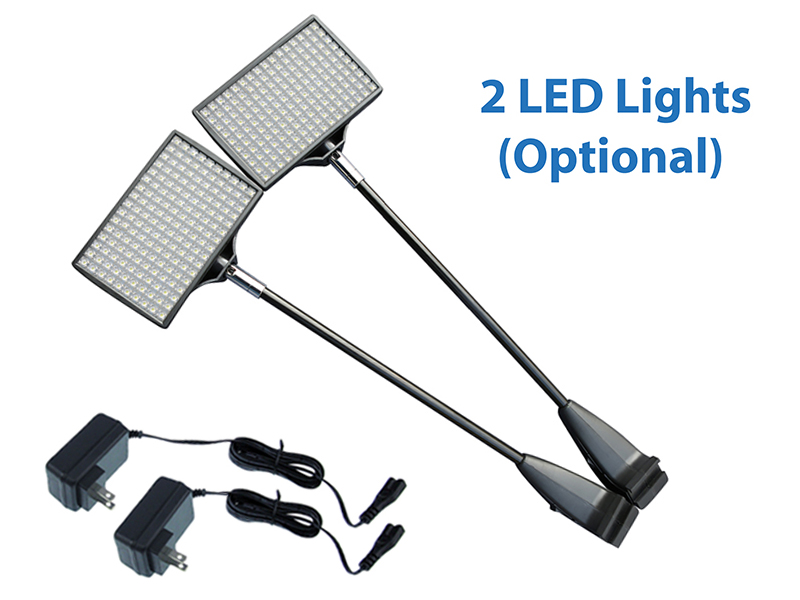

3. Put the light clip on the top of the display and fix it with screw, then connect the light and the clip
