Reverse Lit

Reverse Lit

Specs

Front
Back

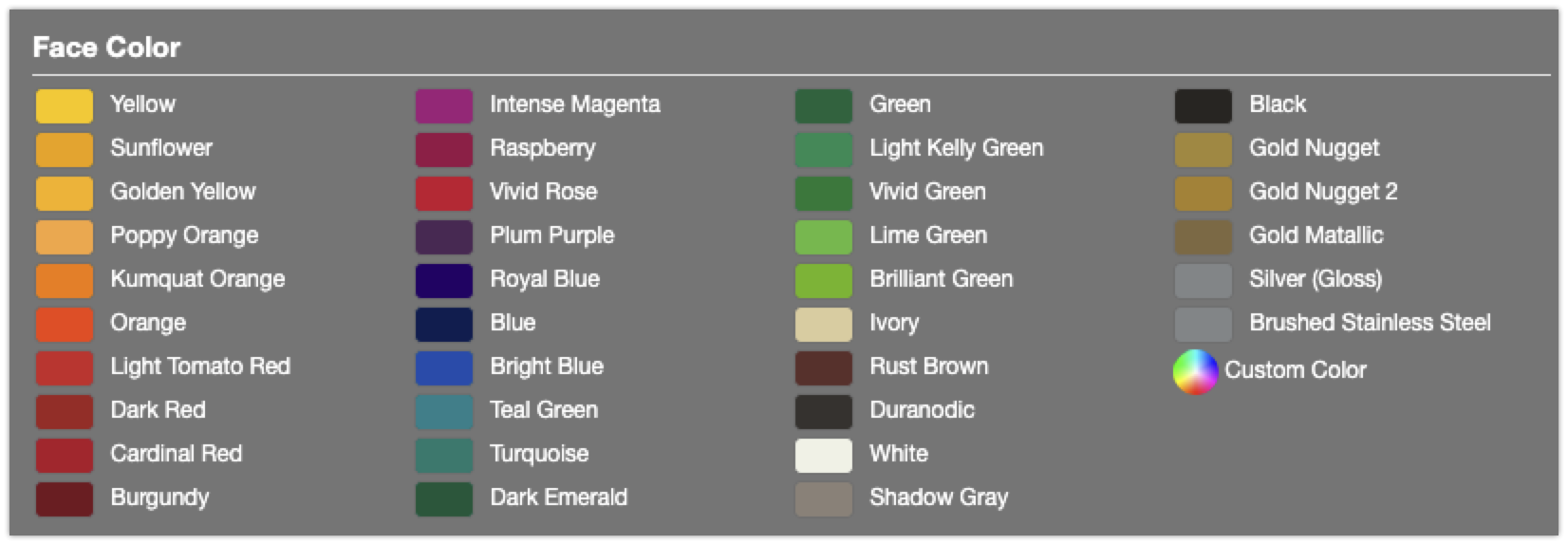

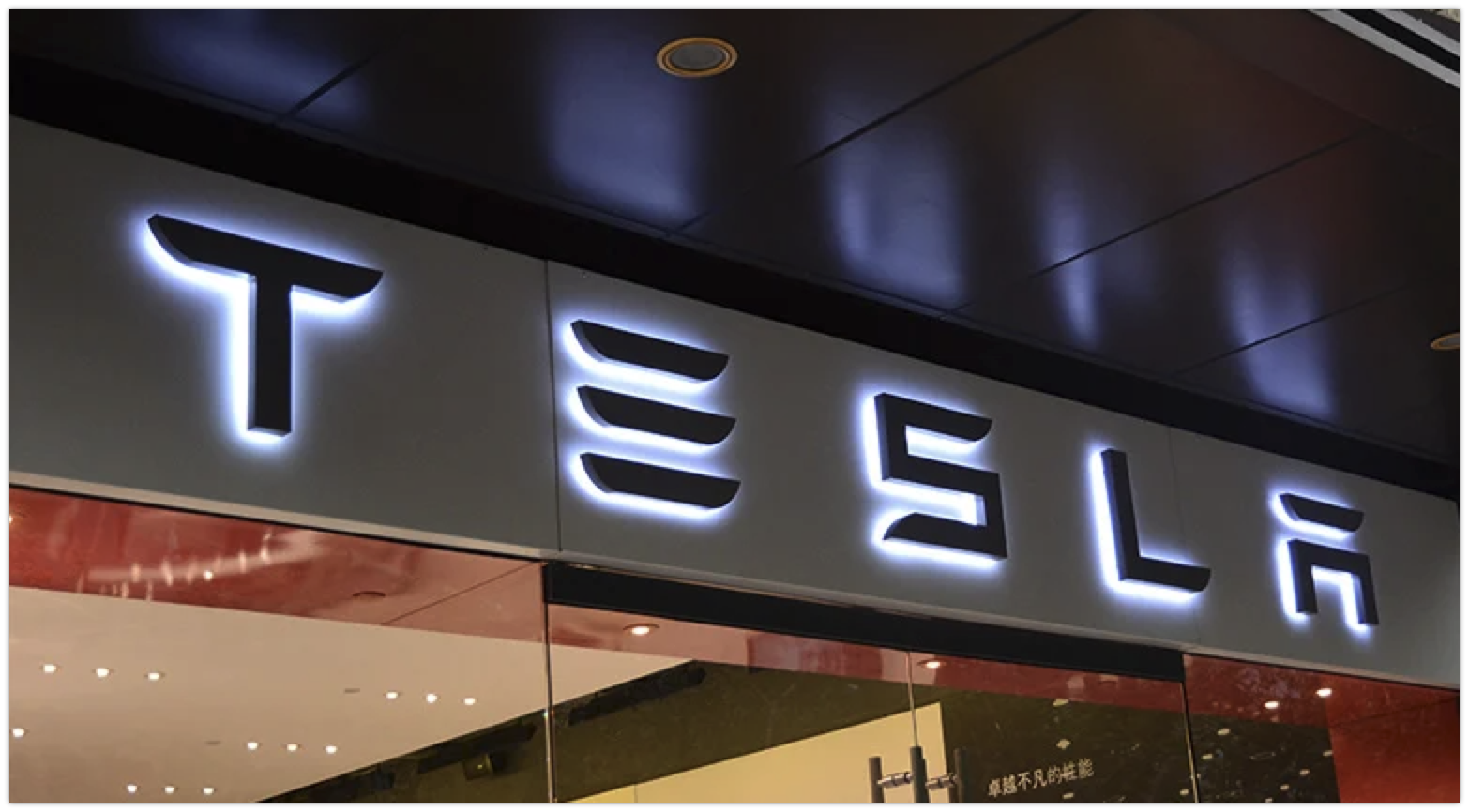

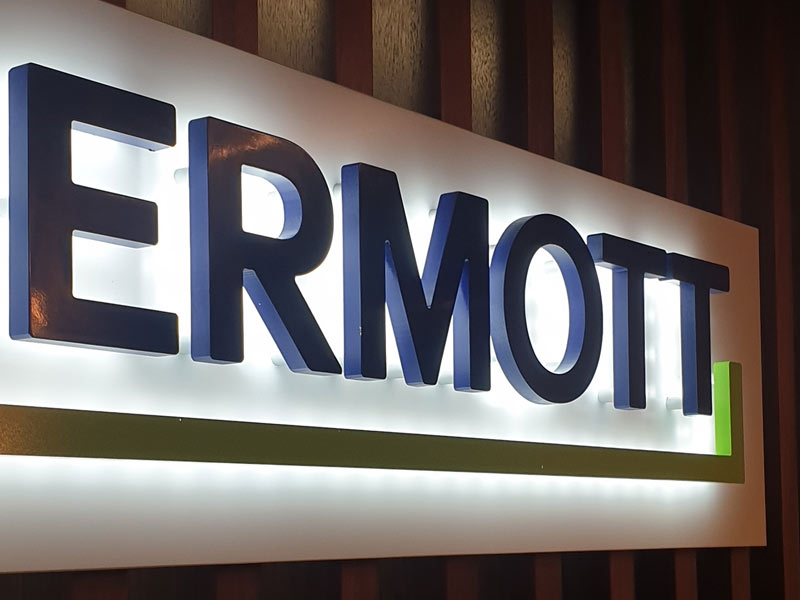

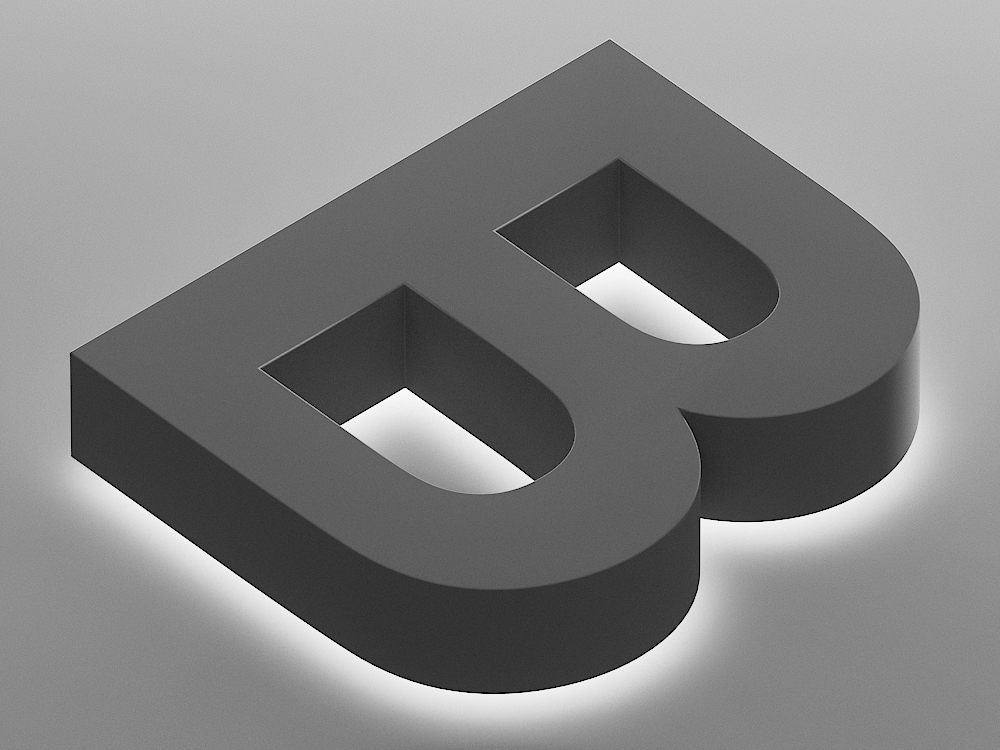

This channel letter has a solid stainless steel face and return available in 35+ colors. Similar to our standard front/back lit, this stainless steel letter has a clear lexan back so the LED shines through and hits the wall to achieve a halo effect.

  • Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
  • Certified: UL Listed with Sign Section Labels for Outdoor Installation
  • 5 Year Warranty

  • Components

    Click to see details.

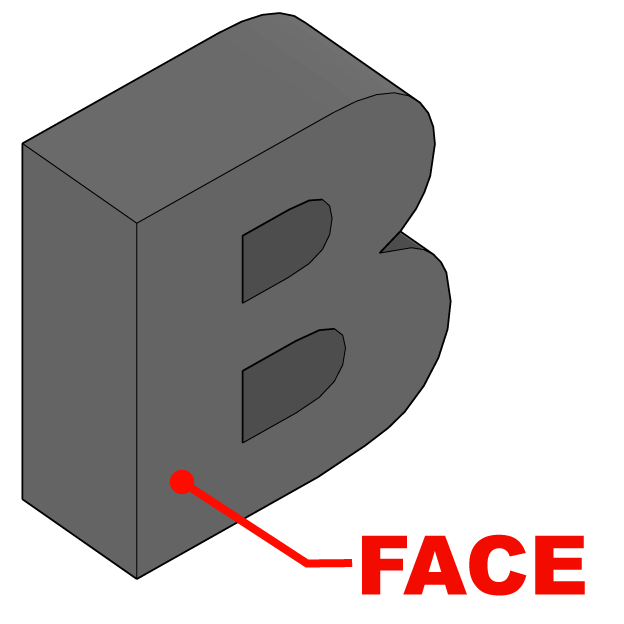

    Face +
    Faces are the front stainless steel surface of Reverse Lit letters

    Specification
    0.8mm/1mm stainless steel

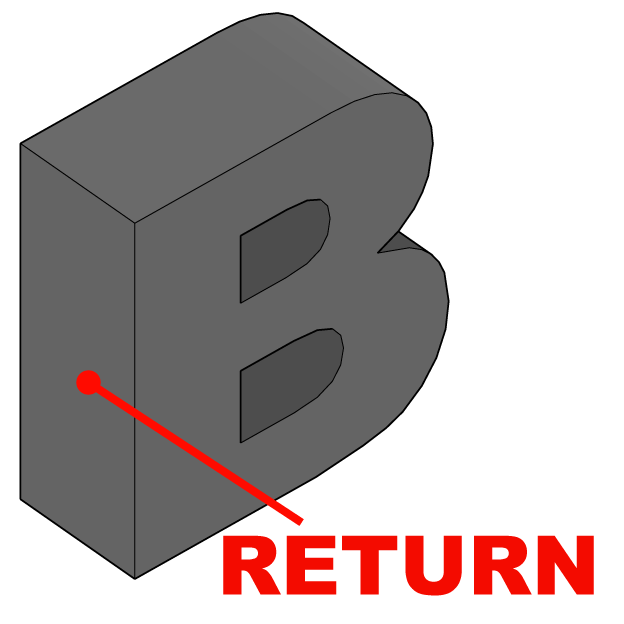

    Return +
    Returns are the sides bordering the Reverse Lit letter.

    Specification
    2" or 3" 0.8mm/1mm stainless steel Returns

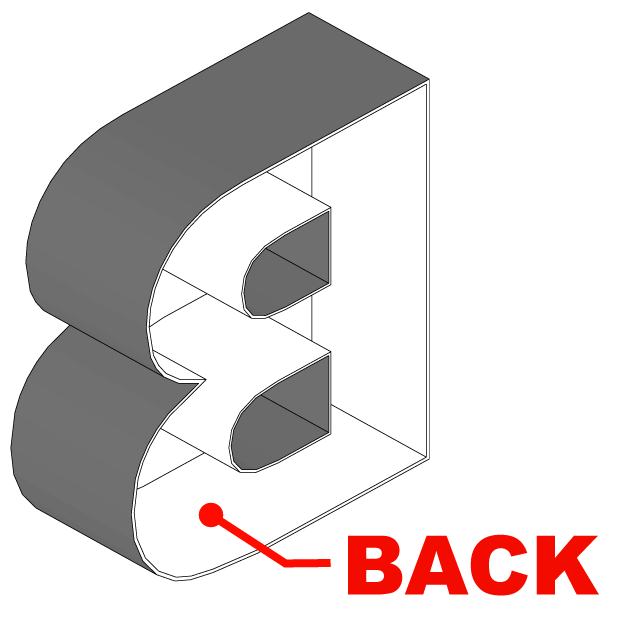

    Back +
    Backs are the back board of the Reverse Lit letter.

    Specification
    1/8” Clear Lexan

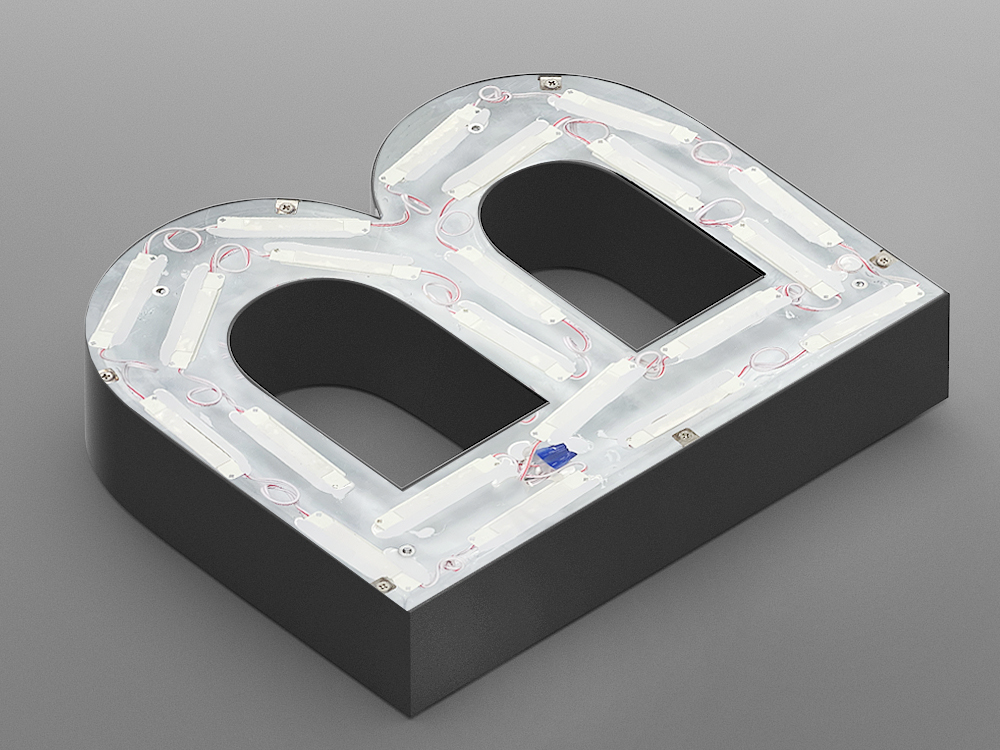

    LED Lights +
    Specification

    Mynice High Efficiency, 160° Beam, IP67, 10000K - 12000K, 0.7W & 1.2W LED Module (5 Year Warranty)
    Power Transformer +
    Specification

    Mean Well HLG-80H-12 100-277V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
    Westrim Transformer Boxes (4"x5"x14" for 1 transformer and 4"x9"x14" for 2 transformers)


    Warranty +

    B2Sign warrants that Stainless Steel Letters will be free from defects in materials and workmanship for a period of five (5) years from the date of shipment. Should there be a malfunction covered under this warranty, the buyer must notify B2 Sign prior to taking any action. To proceed with any work or repairs on signs under warranty without notifying B2 Sign automatically voids any warranty.

    If the product proves defective during the warranty period, B2 Sign, at its option, will:
    (1) Repair the product, at no charge for parts or via telephone/email support
    (2) Replace the product with an equivalent product which may be new or refurbished

    B2Sign tests and inspects all signs for proper operation prior to shipment. In addition, all signs are shipped in packaging that meets or exceeds industry standards for common carrier shipment. Therefore, it is the responsibility of the party receiving the shipment to inspect the packaging for any damage prior to accepting shipment. If packaging is damaged – inspect all contents for damages before signing. Photos should also be taken as a record of evidence. In the event that shipping damage is determined, it is the responsibility of the customer receiving the shipment to file a claim with the carrier and notify by email ChannelLetters@b2sign.com or call 1 (888) 739-8501. Any damages incurred between shipment from our plant and final destination will not be the responsibility of B2 Sign, but will fall on the carrier.

    This warranty does not apply to damages resulting from acts of God, accidental negligence, vandalism or misuse. These warranties shall not apply to any defect, failure or damage caused by improper use, installation or care. B2 Sign shall not be obligated under this warranty.

    The above warranties are given by B2 Sign with respect to this product and its related items in lieu of any other warranties, express or implied. It is the responsibility of B2 Sign to repair defective products and related items as the sole remedy provided to the customer for the honor of this warranty.



    FAQ

    Q: What are the maximum and minimum production limits for each letter?
    A: Size Limits: Largest 48” x 48” . Smallest stroke should be no less than 2"
    Artwork exceeding the quotation limit of 36” x 36” will be proportionately scaled down.
    Please submit email requests for estimates beyond automated options.
    This option is subject to additional processing time and production fees.
    Q: What kind of art files should I submit?
    A: Our system accepts PDF, EPS, or AI formats.
    All files submitted must be Vector and scaled to your specifications.
    Each letter should be outlined and simplified before uploading.
    If you have any trouble uploading a file, you may click the “Help” button at the bottom right and our team will contact you with a quote ASAP.
    Q: How long is the production time for stainless steel channel letters?
    A: The standard turnaround for the stainless steel channel letters is 3 weeks plus shipping.
    If you order a customized Pantone-C color that is outside of the colors listed, it will take an additional 3 or more days for completion.
    Q: How long is the wiring/cord?
    A: Our stainless steel letter comes standard with a 3 feet cord.
    Additional cord can be ordered for extra pricing.
    Q: Are installation accessories provided?
    A: Optional installation accessories are available for purchase.
    We offer simplified installation accessories that do no require the disassembly of letters.
    These include stand-off screws, mounting screws, wiring.
    Q: Do you also have optional parts for installation?
    A: Yes. Optional 3-Wire, 16G, 8-Foot, 3 Outlets, 120V Flat Plug Extension Cord can be ordered.
